RAP开发流程

以物料创建为例子，演示下RAP开发流程

开发流程图

graph LR
  A[数据库表] --> B[CDS];
  B --> C[Behavior Definition];
  B --> D[OData服务];

现在Eclipse里可以一键生成上面的对象了，实际开发只需要集中在取值和行为就行。

新建数据库表

定义数据库表：

示例代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
@EndUserText.label : 'RAP Demo'
@AbapCatalog.enhancement.category : #NOT_EXTENSIBLE
@AbapCatalog.tableCategory : #TRANSPARENT
@AbapCatalog.deliveryClass : #A
@AbapCatalog.dataMaintenance : #RESTRICTED
define table ydemot001 {

  key client            : abap.clnt not null;
  // UUID，如无特殊要求，都建议表主键只用UUID，因为能托管给系统自动创建ID
  key uuid              : sysuuid_x16 not null;
  // 物料编码
  product               : matnr;
  // 物料名称
  product_name          : maktx;
  // 处理状态，数据存在分步处理的情况，通过处理状态控制
  status                : abap.char(1);
  // 处理结果
  mtype                 : bapi_mtype;
  // 消息文本
  msg                   : bapi_msg;
  // Behavior Definition常用参数
  local_last_changed_at : abp_locinst_lastchange_tstmpl;
  local_last_changed_by : abp_locinst_lastchange_user;
  last_changed_at       : abp_lastchange_tstmpl;
  last_changed_by       : abp_lastchange_user;

}

创建服务

以前还要手工建CDS，Behavior Definition，Service Definition，Service Binding，现在可以一键创建：

一键创建对象

微调CDS

判断物料创建是否成功，还是查表比较靠谱，所以微调下CDS：

关联MARA检查物料是否创建
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: '##GENERATED YDEMOT001'
define root view entity ZR_YDEMOT001
  as select from    ydemot001   as Datalake
    left outer join mara as mara on Datalake.product = mara.matnr
{
  key Datalake.uuid                  as UUID,
      Datalake.product               as Product,
      Datalake.product_name          as ProductName,
      Datalake.status                as Status,
      Datalake.mtype                 as Mtype,
      Datalake.msg                   as Msg,
      // 检查SAP是否已存在物料
      case when mara.matnr is null
        then '' // 未创建
        else 'X' // 已创建
      end                            as ErpCreated,
      @Semantics.systemDateTime.localInstanceLastChangedAt: true
      Datalake.local_last_changed_at as LocalLastChangedAt,
      @Semantics.user.localInstanceLastChangedBy: true
      Datalake.local_last_changed_by as LocalLastChangedBy,
      @Semantics.systemDateTime.lastChangedAt: true
      Datalake.last_changed_at       as LastChangedAt,
      @Semantics.user.lastChangedBy: true
      Datalake.last_changed_by       as LastChangedBy

}

微调Behavior Definition

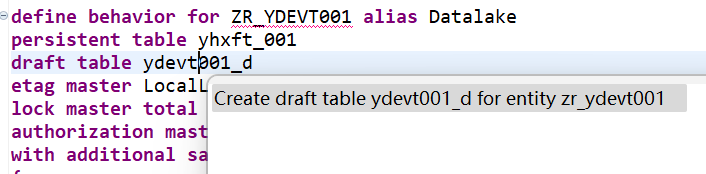

首先修改Draft Table，光标放在草稿表上，快捷键Ctrl+F1，选择重建： 重建Draft Table

然后微调下面高亮部分：

  • 新增 action: CreateErpProduct
  • 新增 with additional save，用于触发 save_modify
  • 注释mapping里的字段，将这部分字段从托管改为手工处理
示例代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
managed implementation in class ZBP_YDEMOT001 unique;
strict ( 2 );
with draft;

define behavior for ZR_YDEMOT001 alias Datalake
persistent table ydemot001
draft table zydemot001_d
etag master LocalLastChangedAt
lock master total etag LastChangedAt
authorization master ( global )
with additional save
{
  field ( readonly )
  UUID,
  LastChangedAt,
  LastChangedBy,
  LocalLastChangedAt,
  LocalLastChangedBy;

  field ( numbering : managed )
  UUID;

  action CreateErpProduct result [1] $self;

  create;
  update;
  delete;

  draft action Edit;
  draft action Activate optimized;
  draft action Discard;
  draft action Resume;
  draft determine action Prepare;

  mapping for ydemot001
    {
      UUID               = uuid;
      // 涉及API调用，下面字段在save_modify方法中手工处理，而不是托管
      //      Product            = product;
      //      ProductName        = product_name;
      //      Status             = status;
      //      Mtype              = mtype;
      //      Msg                = msg;
      LocalLastChangedAt = local_last_changed_at;
      LocalLastChangedBy = local_last_changed_by;
      LastChangedAt      = last_changed_at;
      LastChangedBy      = last_changed_by;
    }
}

修改行为类

新增消息类，替代以前直接Message报错

消息类
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
CLASS lcl_abap_behv_msg DEFINITION CREATE PUBLIC INHERITING FROM cx_no_check.
  PUBLIC SECTION.

    INTERFACES if_abap_behv_message .

    ALIASES msgty
      FOR if_t100_dyn_msg~msgty .
    ALIASES msgv1
      FOR if_t100_dyn_msg~msgv1 .
    ALIASES msgv2
      FOR if_t100_dyn_msg~msgv2 .
    ALIASES msgv3
      FOR if_t100_dyn_msg~msgv3 .
    ALIASES msgv4
      FOR if_t100_dyn_msg~msgv4 .

    METHODS constructor
      IMPORTING
        !textid   LIKE if_t100_message=>t100key OPTIONAL
        !previous LIKE previous OPTIONAL
        !msgty    TYPE symsgty OPTIONAL
        !msgv1    TYPE simple OPTIONAL
        !msgv2    TYPE simple OPTIONAL
        !msgv3    TYPE simple OPTIONAL
        !msgv4    TYPE simple OPTIONAL .

    CLASS-METHODS new_message_with_text
      IMPORTING !severity  TYPE if_abap_behv_message=>t_severity  DEFAULT if_abap_behv_message=>severity-error
                !text      TYPE csequence OPTIONAL
      RETURNING VALUE(obj) TYPE REF TO if_abap_behv_message.

ENDCLASS.

CLASS lcl_abap_behv_msg IMPLEMENTATION.

  METHOD constructor.
    CALL METHOD super->constructor EXPORTING previous = previous.
    me->msgty = msgty .
    me->msgv1 = msgv1 .
    me->msgv2 = msgv2 .
    me->msgv3 = msgv3 .
    me->msgv4 = msgv4 .
    CLEAR me->textid.
    IF textid IS INITIAL.
      if_t100_message~t100key = if_t100_message=>default_textid.
    ELSE.
      if_t100_message~t100key = textid.
    ENDIF.
  ENDMETHOD.

  METHOD new_message_with_text.

    obj = NEW lcl_abap_behv_msg(
      textid = VALUE #(
                 msgid = 'SABP_BEHV'
                 msgno = '100'
                 attr1 = COND #( WHEN text IS NOT INITIAL THEN 'IF_T100_DYN_MSG~MSGV1' )
    )
      msgty = SWITCH #( severity
                WHEN if_abap_behv_message=>severity-error       THEN 'E'
                WHEN if_abap_behv_message=>severity-warning     THEN 'W'
                WHEN if_abap_behv_message=>severity-information THEN 'I'
                WHEN if_abap_behv_message=>severity-success     THEN 'S' )
      msgv1 = |{ text }|
    ).
    obj->m_severity = severity.

  ENDMETHOD.

ENDCLASS.

由于这个示例是模拟“用户点击创建按钮生成物料”操作，且Action存在某些限制，导致具体处理只能移到save_modify。

为了处理这种多步操作，程序通过以下处理状态判断：

状态 描述
空 初始数据
R 待处理
P 处理中
F 处理完成
处理状态常量
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
CLASS lcl_constant DEFINITION.
  PUBLIC SECTION.
    CONSTANTS:
      BEGIN OF cns_process_status,
        initial    VALUE '',
        ready      VALUE 'R',
        processing VALUE 'P',
        finish     VALUE 'F',
        error      VALUE 'E',
      END OF cns_process_status.
ENDCLASS.

通过cl_abap_behavior_handler响应Action操作：

响应CreateErpProdcut操作
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
CLASS lhc_datalake DEFINITION INHERITING FROM cl_abap_behavior_handler.
  PRIVATE SECTION.
    METHODS:
      get_global_authorizations FOR GLOBAL AUTHORIZATION
        IMPORTING
        REQUEST requested_authorizations FOR datalake
        RESULT result.
    METHODS createerpproduct FOR MODIFY
      IMPORTING keys FOR ACTION datalake~createerpproduct RESULT result.
ENDCLASS.

CLASS lhc_datalake IMPLEMENTATION.
  METHOD get_global_authorizations.
  ENDMETHOD.

  METHOD createerpproduct.

    " 读取要创建物料的条目
    READ ENTITIES OF zr_ydemot001 IN LOCAL MODE
      ENTITY datalake ALL FIELDS WITH CORRESPONDING #( keys )
      RESULT DATA(lt_datalake).

    DATA lt_update TYPE TABLE FOR UPDATE zr_ydemot001.
    DATA lv_msg TYPE string.

    LOOP AT lt_datalake REFERENCE INTO DATA(lr_datalake).
      IF lr_datalake->status IS NOT INITIAL.
        "
        CASE lr_datalake->status.
          WHEN lcl_constant=>cns_process_status-ready.
            " 已经是准备状态了，不用报错也不用继续设置状态
          WHEN lcl_constant=>cns_process_status-processing.
            lv_msg = '数据处理中，不允许重复处理'.
          WHEN lcl_constant=>cns_process_status-finish.
            lv_msg = '数据已处理，不允许重复处理'.
          WHEN lcl_constant=>cns_process_status-error.
            " 已处理，但处理异常，允许重复处理
          WHEN OTHERS.
            lv_msg = '数据状态异常'.
        ENDCASE.

        "
        IF lv_msg IS NOT INITIAL.
          " 新建消息区域
          INSERT VALUE #(
              %tky        = lr_datalake->%tky
              %state_area = 'STATUS_CHECK'
          ) INTO TABLE reported-datalake.
          " 展示错误消息
          INSERT VALUE #( %tky = lr_datalake->%tky ) INTO TABLE failed-datalake.
          INSERT VALUE #( %tky        = lr_datalake->%tky
                          %state_area = 'STATUS_CHECK'
                          %msg        = lcl_abap_behv_msg=>new_message_with_text( severity = if_abap_behv_message=>severity-error
                                                                                  text     = '数据处理中，不允许重复处理' )
          ) INTO TABLE reported-datalake.
          CONTINUE.
        ENDIF.
      ENDIF.

      IF lr_datalake->erpcreated = abap_true.
        " 新建消息区域
        INSERT VALUE #(
            %tky        = lr_datalake->%tky
            %state_area = 'CREATED_CHECK'
        ) INTO TABLE reported-datalake.
        " 展示错误消息
        INSERT VALUE #( %tky = lr_datalake->%tky ) INTO TABLE failed-datalake.
        INSERT VALUE #( %tky        = lr_datalake->%tky
                        %state_area = 'CREATED_CHECK'
                        %msg        = lcl_abap_behv_msg=>new_message_with_text( severity = if_abap_behv_message=>severity-error
                                                                                text     = 'ERP已创建该物料，请勿重复创建' )
        ) INTO TABLE reported-datalake.
        CONTINUE.
      ENDIF.

      INSERT CORRESPONDING #( lr_datalake->* ) INTO TABLE lt_update REFERENCE INTO DATA(lr_update).
      " 切换到待处理状态
      lr_update->status = lcl_constant=>cns_process_status-ready.
      CLEAR lr_update->mtype.
      CLEAR lr_update->msg.
    ENDLOOP.

    " 更新数据状态，在后续save_modify处理中，会根据状态判断是否执行创建物料操作
    MODIFY ENTITIES OF zr_ydemot001 IN LOCAL MODE
        ENTITY datalake
            UPDATE FIELDS ( product status mtype msg ) WITH lt_update
        FAILED failed
        REPORTED reported.

    " 再次读取数据返回前端显示
    READ ENTITIES OF zr_ydemot001 IN LOCAL MODE
      ENTITY datalake ALL FIELDS WITH CORRESPONDING #( keys )
      RESULT DATA(lt_result).
    result = VALUE #( FOR ls IN lt_result ( %tky   = ls-%tky
                                            %param = ls ) ).

  ENDMETHOD.

ENDCLASS.

通过继承cl_abap_behavior_saver来重写save_modified：

重写save_modified
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
CLASS lsc_zr_ydemot001 DEFINITION INHERITING FROM cl_abap_behavior_saver.
  PROTECTED SECTION.
    METHODS save_modified REDEFINITION.
ENDCLASS.

CLASS lsc_zr_ydemot001 IMPLEMENTATION.
  METHOD save_modified.

    DATA lt_datalake TYPE TABLE FOR READ RESULT zr_ydemot001.

    IF create-datalake IS NOT INITIAL.
      " Provide table of instance data of all instances that have been created during current transaction
      " Use %CONTROL to get information on what entity fields have been set or updated during the current transaction
    ENDIF.

    IF update-datalake IS NOT INITIAL.
      " Provide table of instance data of all instances that have been updated during current transaction
      " Use %CONTROL to get information on what entity fields have been updated

      " 取待处理数据
      lt_datalake = CORRESPONDING #( update-datalake ).
      DELETE lt_datalake WHERE status <> lcl_constant=>cns_process_status-ready.
      " 状态更新为处理中
      LOOP AT lt_datalake REFERENCE INTO DATA(lr_datalake).
        lr_datalake->status = lcl_constant=>cns_process_status-processing.
      ENDLOOP.
      " 数据处理
      NEW ycl_clean_core_demo( )->cerate_product( CHANGING ct_datalake = lt_datalake ).
      " 回写状态
      LOOP AT lt_datalake REFERENCE INTO lr_datalake.
        IF lr_datalake->mtype = 'S'.
          lr_datalake->status = lcl_constant=>cns_process_status-finish.
        ELSE.
          CLEAR lr_datalake->product.
          lr_datalake->status = lcl_constant=>cns_process_status-error.
          IF lr_datalake->mtype IS INITIAL.
            lr_datalake->mtype = 'E'.
          ENDIF.
          IF lr_datalake->msg IS INITIAL.
            lr_datalake->msg = '创建物料失败'.
          ENDIF.
        ENDIF.
        UPDATE ydemot001 SET
          product = @lr_datalake->product,
          status = @lr_datalake->status,
          mtype = @lr_datalake->mtype,
          msg = @lr_datalake->msg
        WHERE uuid = @lr_datalake->uuid.
      ENDLOOP.

    ENDIF.

    IF delete-datalake IS NOT INITIAL.
      " Provide table with keys of all instances that have been deleted during current transaction
      " Use %CONTROL to get information on what entity fields have been updated
    ENDIF.

  ENDMETHOD.
ENDCLASS.

创建物料

研究了几种创建物料的方法，结合自定义BO使用，仅推荐调用公共API这一种方法：

创建方式 说明
EML 最后一步提交涉及COMMIT操作，无法在BO内嵌套使用
内部API 由于资料太少，推测是SAP内部使用的API
公共接口（A2X） 公共接口，通常用于外围系统访问，在BO内可以通过CREATE_V2_LOCAL_PROXY方式模拟接口调用
应该是最合适Clean Core的方式
公共接口（V4） 调用方法类比A2X，换成V4即可
测试发现，执行请求后会出现COMMIT/ROLLBACK操作，无法在BO内使用
示例代码
  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
CLASS ycl_clean_core_demo DEFINITION
  PUBLIC
  FINAL
  CREATE PUBLIC .

  PUBLIC SECTION.

    TYPES:
      BEGIN OF ty_datalake,
        BEGIN OF product,
          entities TYPE TABLE FOR READ RESULT zr_ydemot001,
          failed   TYPE TABLE FOR FAILED LATE zr_ydemot001,
          reported TYPE TABLE FOR REPORTED LATE zr_ydemot001,
        END OF product,
      END OF ty_datalake.

    METHODS: cerate_product CHANGING ct_datalake TYPE ty_datalake-product-entities.


  PROTECTED SECTION.
  PRIVATE SECTION.
    METHODS: cerate_product_eml CHANGING ct_datalake TYPE ty_datalake-product-entities.
    METHODS: cerate_product_api CHANGING ct_datalake TYPE ty_datalake-product-entities.
    METHODS: cerate_product_a2x CHANGING ct_datalake TYPE ty_datalake-product-entities.
    METHODS: cerate_product_odata_v4 CHANGING ct_datalake TYPE ty_datalake-product-entities.
    METHODS: _write_error IMPORTING iv_msg      TYPE bapi_msg
                          CHANGING  ct_datalake TYPE ty_datalake-product-entities.
ENDCLASS.



CLASS ycl_clean_core_demo IMPLEMENTATION.

  METHOD cerate_product.

*    " EML方式创建物料，由于Behavior不能嵌套Behavior操作，所以执行会Dump
*    cerate_product_eml( CHANGING ct_datalake = ct_datalake ).

    " 内部API方式创建物料
    cerate_product_api( CHANGING ct_datalake = ct_datalake ).

*    " 模拟调用公共接口（A2X）创建物料议
*    cerate_product_a2x( CHANGING ct_datalake = ct_datalake ).

*    " 模拟调用公共接口（V4）创建物料议
*    " 无解，V4执行后会COMMIT/ROLLBACK，这导致DUMP，得找SAP问问
*    cerate_product_odata_v4( CHANGING ct_datalake = ct_datalake ).

  ENDMETHOD.


  METHOD cerate_product_eml.
*&---------------------------------------------------------------------*
*& 使用EML方式创建物料，可用，但不能在BO内嵌套使用
*&---------------------------------------------------------------------*
    DATA:
      lt_product      TYPE TABLE FOR CREATE r_producttp,
      ls_product      LIKE LINE OF lt_product,
      lt_product_desc TYPE TABLE FOR CREATE r_producttp\_productdescription,
      ls_product_desc LIKE LINE OF lt_product_desc.
    DATA lv_has_error.

*&---------------------------------------------------------------------*
*& 数据填充
*&---------------------------------------------------------------------*
    LOOP AT ct_datalake REFERENCE INTO DATA(lr_datalake).
      " 设置临时编号并不能自动流水，核心是S_TEMP_NUM字段
      IF lr_datalake->product IS INITIAL.
        lr_datalake->product = |%{ sy-tabix }|.
      ENDIF.
*&---------------------------------------------------------------------*
*& 物料基础视图
*&---------------------------------------------------------------------*
      CLEAR ls_product.
      ls_product-%cid = lr_datalake->uuid.

      ls_product-product = lr_datalake->product.
      ls_product-%control-product = if_abap_behv=>mk-on.

      ls_product-industrysector = 'M'. " 机械工程
      ls_product-%control-industrysector = if_abap_behv=>mk-on.

      ls_product-producttype = 'FERT'. " 成品
      ls_product-%control-producttype = if_abap_behv=>mk-on.

      ls_product-baseunit = 'EA'. "
      ls_product-%control-baseunit = if_abap_behv=>mk-on.

      INSERT ls_product INTO TABLE lt_product.

*&---------------------------------------------------------------------*
*& 物料描述
*&---------------------------------------------------------------------*
      CLEAR ls_product_desc.
      ls_product_desc-%cid_ref = lr_datalake->uuid.
      ls_product_desc-product = lr_datalake->product.

      DATA ls_product_desc_target LIKE LINE OF ls_product_desc-%target.
      CLEAR ls_product_desc_target.
      ls_product_desc_target-%cid = |{ lr_datalake->uuid }-desc1|.

      ls_product_desc_target-product = lr_datalake->product.
      ls_product_desc_target-%control-product = if_abap_behv=>mk-on.

      ls_product_desc_target-language = '1'.
      ls_product_desc_target-%control-language = if_abap_behv=>mk-on.

      ls_product_desc_target-productdescription = lr_datalake->productname.
      ls_product_desc_target-%control-productdescription = if_abap_behv=>mk-on.

      INSERT ls_product_desc_target INTO TABLE ls_product_desc-%target.
      INSERT ls_product_desc INTO TABLE lt_product_desc.
    ENDLOOP.

*&---------------------------------------------------------------------*
*& 调用EML
*&---------------------------------------------------------------------*
    " 用EML方式触发Behavior来创建物料
    MODIFY ENTITIES OF r_producttp
        ENTITY product
            CREATE FROM lt_product
            " 对于子结构，Product字段为只读字段，所以只能将列全部列出，不能用省略的写法
            " CREATE BY \_productdescription FROM lt_product_desc
            CREATE BY \_productdescription FIELDS ( language productdescription ) WITH lt_product_desc
        MAPPED DATA(create_mapped)
        FAILED DATA(create_failed)
        REPORTED DATA(create_reported).

    " 前置校验处理
    IF create_failed IS NOT INITIAL.
      LOOP AT ct_datalake REFERENCE INTO lr_datalake.
        lr_datalake->mtype = 'E'.
        LOOP AT create_reported-product INTO DATA(ls_create_reported).
          lr_datalake->msg = |{ lr_datalake->msg }{ ls_create_reported-%msg->if_message~get_text( ) };|.
        ENDLOOP.
      ENDLOOP.
    ENDIF.

    " 模拟创建
    " 开启异步调试，系统调试，断点打CL_CMD_PROD_RAP_HANDLER~VALIDATE_PRODUCT方法
    " 在调试中，设置api_data_t-s_temp_num=X，就能自动给号了
    COMMIT ENTITIES IN SIMULATION MODE
        RESPONSE OF r_producttp
        FAILED DATA(simulation_failed)
        REPORTED DATA(simulation_reported).

    " 模拟创建结果处理
    IF simulation_failed IS NOT INITIAL.
      LOOP AT ct_datalake REFERENCE INTO lr_datalake.
        lr_datalake->mtype = 'E'.
        LOOP AT simulation_reported-product INTO DATA(ls_simulation_reported).
          lr_datalake->msg = |{ lr_datalake->msg }{ ls_simulation_reported-%msg->if_message~get_text( ) };|.
        ENDLOOP.
      ENDLOOP.
      RETURN.
    ENDIF.

    " 正式创建
    " 有点奇怪，模拟似乎也会占用流水
    COMMIT ENTITIES
        RESPONSE OF r_producttp
        FAILED DATA(commit_failed)
        REPORTED DATA(commit_reported).

    " 正式创建结果处理
    LOOP AT ct_datalake REFERENCE INTO lr_datalake.
      IF commit_failed IS NOT INITIAL.
        lr_datalake->mtype = 'E'.
        LOOP AT commit_reported-product INTO DATA(ls_commit_reported).
          lr_datalake->msg = |{ lr_datalake->msg }{ ls_commit_reported-%msg->if_message~get_text( ) };|.
        ENDLOOP.
      ELSE.
        lr_datalake->mtype = 'S'.
        lr_datalake->msg = |物料创建成功|.
        " 由于物料EML只能外部给号，这里回写并没有意义
*        DATA(lv_matnr) = create_mapped-product[ %cid = lr_datalake->uuid ]-product.
*        lr_datalake->msg = |物料创建成功，编号: { lv_matnr }|.
      ENDIF.
    ENDLOOP.

  ENDMETHOD.


  METHOD cerate_product_api.
*&---------------------------------------------------------------------*
*& 使用内部API（cl_cmd_prod_data_api）创建物料，代码类似以前的BAPI
*&---------------------------------------------------------------------*
    DATA: lt_unified_api_data TYPE cmd_prd_t_unified_prod_data,
          ls_unified_api_data TYPE cmd_prd_s_unified_prod_data,
          lt_prodwise_output  TYPE cl_cmd_prod_data_api=>if_cmd_product_maint_api~tt_pmd_output,
          lv_has_error        TYPE boole_d VALUE abap_false,
          lv_product          TYPE productnumber,
          lv_mtype            TYPE bapi_mtype,
          lv_msg              TYPE bapi_msg.

*&---------------------------------------------------------------------*
*& 数据填充
*&---------------------------------------------------------------------*
    LOOP AT ct_datalake REFERENCE INTO DATA(lr_datalake).
      CLEAR ls_unified_api_data.

      " 对于非外部给号物料，需设置S_TEMP_NUM=X
      IF lr_datalake->product IS INITIAL.
        lr_datalake->product = |%{ sy-tabix }|.
        ls_unified_api_data-s_temp_num = abap_true.
      ENDIF.

*&---------------------------------------------------------------------*
*& 物料基础视图
*&---------------------------------------------------------------------*
      ls_unified_api_data-product-product = lr_datalake->product.
      ls_unified_api_data-product-productdescription = lr_datalake->productname.
      ls_unified_api_data-product-industrysector = 'M'.
      ls_unified_api_data-product-producttype = 'FERT'.
      ls_unified_api_data-product-baseunit = '11'. " 因为不想在测试中创建物料，这里随便给个错误值

*&---------------------------------------------------------------------*
*& 物料描述
*&---------------------------------------------------------------------*
      DATA ls_prd_descr LIKE LINE OF ls_unified_api_data-prd_descr.
      CLEAR ls_prd_descr.
      ls_prd_descr-product = lr_datalake->product.
      ls_prd_descr-language = '1'.
      ls_prd_descr-productdescription = lr_datalake->productname.
      INSERT ls_prd_descr INTO TABLE ls_unified_api_data-prd_descr.

      INSERT ls_unified_api_data INTO TABLE lt_unified_api_data.
    ENDLOOP.

*&---------------------------------------------------------------------*
*& 复制标准代码，价格优先根据科目价格
*&---------------------------------------------------------------------*
    LOOP AT lt_unified_api_data ASSIGNING FIELD-SYMBOL(<ls_unified_api_data>).
      LOOP AT <ls_unified_api_data>-ml_prices ASSIGNING FIELD-SYMBOL(<ls_ml_prices>).
        TRY .
            DATA(lr_ml_account) = REF #( <ls_unified_api_data>-ml_account[ product = <ls_ml_prices>-product
                                                                           valuationarea = <ls_ml_prices>-valuationarea
                                                                           valuationtype = <ls_ml_prices>-valuationtype
                                                                           currencyrole = <ls_ml_prices>-currencyrole ] ).
            <ls_ml_prices>-priceunitqty = lr_ml_account->priceunitqty.
          CATCH cx_sy_itab_line_not_found.
        ENDTRY.
      ENDLOOP.
    ENDLOOP.

*&---------------------------------------------------------------------*
*& API调用
*&---------------------------------------------------------------------*
    cl_cmd_prod_data_api=>get_instance(
      IMPORTING
        eo_cmd_prod_data_api = DATA(lo_unified_prod_data_api)
    ).

    TRY .
        lo_unified_prod_data_api->if_cmd_product_maint_api~check(
          IMPORTING
            et_prodwise_output = lt_prodwise_output
          CHANGING
            ct_data            = lt_unified_api_data
        ).
      CATCH cx_cmd_product_maint_api INTO DATA(lx_cmd_product_maint_api).
        lv_msg = lx_cmd_product_maint_api->if_message~get_text( ).
        _write_error( EXPORTING iv_msg = lv_msg CHANGING ct_datalake = ct_datalake ).
        RETURN.
    ENDTRY.

    LOOP AT lt_prodwise_output ASSIGNING FIELD-SYMBOL(<ls_prodwise_output>).
      IF <ls_prodwise_output>-enqueue_failed = abap_true OR <ls_prodwise_output>-update_failed = abap_true.
        lv_has_error = abap_true.
        READ TABLE ct_datalake REFERENCE INTO lr_datalake WITH KEY product = <ls_prodwise_output>-product.
        IF sy-subrc = 0.
          LOOP AT <ls_prodwise_output>-t_message ASSIGNING FIELD-SYMBOL(<ls_message>) WHERE msgty CA 'EAX'.
            MESSAGE ID <ls_message>-msgid TYPE <ls_message>-msgty NUMBER <ls_message>-msgno
            WITH <ls_message>-msgv1 <ls_message>-msgv2 <ls_message>-msgv3 <ls_message>-msgv4
            INTO lv_msg.
            lr_datalake->mtype = 'E'.
            lr_datalake->msg = |{ lr_datalake->msg }{ lv_msg };|.
          ENDLOOP.
        ENDIF.
      ELSEIF <ls_prodwise_output>-is_new_number = abap_true.
        READ TABLE ct_datalake REFERENCE INTO lr_datalake WITH KEY product = <ls_prodwise_output>-product_temp.
        IF sy-subrc = 0.
          lr_datalake->product = <ls_prodwise_output>-product.
          lr_datalake->mtype = 'S'.
          lr_datalake->msg = |物料{ <ls_prodwise_output>-product }创建成功|.
        ENDIF.
      ENDIF.
    ENDLOOP.

    IF lv_has_error = abap_false.
      TRY .
          lo_unified_prod_data_api->if_cmd_product_maint_api~save( ).
        CATCH cx_cmd_product_maint_api INTO DATA(lx_cmd_product_maint_api_save).
          lv_msg = lx_cmd_product_maint_api_save->if_message~get_text( ).
          _write_error( EXPORTING iv_msg = lv_msg CHANGING ct_datalake = ct_datalake ).
      ENDTRY.
    ENDIF.

  ENDMETHOD.


  METHOD cerate_product_a2x.
*&---------------------------------------------------------------------*
*& 模拟公共接口（A2X/V2）调用
*&---------------------------------------------------------------------*
    " 定义参数格式
    TYPES:
      BEGIN OF ty_entity.
        INCLUDE TYPE a_product.
    TYPES:
        to_description TYPE STANDARD TABLE OF a_productdescription WITH EMPTY KEY,
      END OF ty_entity.
    " 暂时没找到批量处理的方法，不过为了保持和V4格式一致，这里还是保留批处理结构
    TYPES:
      BEGIN OF ty_batch,
        data_ref      TYPE REF TO data,
        request_body  TYPE ty_entity,
        request       TYPE REF TO /iwbep/if_cp_request_create,
        response_body TYPE ty_entity,
        response      TYPE REF TO /iwbep/if_cp_response_create,
      END OF ty_batch.

    DATA:
      lt_batch TYPE STANDARD TABLE OF ty_batch WITH EMPTY KEY,
      ls_batch TYPE ty_batch,
      lv_mtype TYPE bapi_mtype,
      lv_msg   TYPE bapi_msg.

    DATA:
      lo_client_proxy             TYPE REF TO /iwbep/if_cp_client_proxy,
      lo_create_request_changeset TYPE REF TO /iwbep/if_cp_request_changeset,
      lo_create_request           TYPE REF TO /iwbep/if_cp_request_create,
      lo_create_response          TYPE REF TO /iwbep/if_cp_response_create,
      lo_data_desc_node_root      TYPE REF TO /iwbep/if_cp_data_desc_node,
      lo_data_desc_node_child     TYPE REF TO /iwbep/if_cp_data_desc_node,
      lo_entity_list_resource     TYPE REF TO /iwbep/if_cp_resource_list.

    TRY.
        " OData代理
        " ID和Version可以从S4HANA_OP_API包中查找
        DATA: ls_service_key TYPE /iwbep/if_cp_client_proxy=>ty_s_service_key_v2.
        ls_service_key = VALUE #( service_id      = 'API_PRODUCT_SRV'
                                  service_version = '0001' ).
        lo_client_proxy = /iwbep/cl_cp_client_proxy_fact=>create_v2_local_proxy( is_service_key     = ls_service_key
                                                                                 iv_do_write_traces = abap_true ).

        " 创建资源对象
        lo_entity_list_resource = lo_client_proxy->create_resource_for_entity_set( 'A_Product' ).

        LOOP AT ct_datalake REFERENCE INTO DATA(lr_datalake).
          " 还要回写消息，统一记录起来
          CLEAR ls_batch.
          ls_batch-data_ref = lr_datalake.
          INSERT ls_batch INTO TABLE lt_batch REFERENCE INTO DATA(lr_batch).

          " 基础视图
          lr_batch->request_body-producttype = 'FERT'.
          lr_batch->request_body-industrysector = 'M'.
          lr_batch->request_body-baseunit = 'EA'.
          " 物料描述
          lr_batch->request_body-to_description = VALUE #( ( language = '1' productdescription = lr_datalake->productname ) ).

          "
          lr_batch->request =
          lo_create_request = lo_entity_list_resource->create_request_for_create( ).
          " 节点描述
          lo_data_desc_node_root = lo_create_request->create_data_descripton_node( ).
          lo_data_desc_node_child = lo_data_desc_node_root->add_child( 'TO_DESCRIPTION' ).

          lo_create_request->set_deep_business_data( is_business_data    = lr_batch->request_body
                                                     io_data_description = lo_data_desc_node_root ).
          lo_create_request->execute( ).
        ENDLOOP.

        " 回写执行消息
        LOOP AT lt_batch REFERENCE INTO lr_batch.
          TRY.
              lo_create_request = lr_batch->request.
              lo_create_request = lo_create_request->check_execution( ).
              IF lo_create_request IS BOUND.
                lo_create_response = lo_create_request->get_response(  ).
                lo_create_response->get_business_data( IMPORTING es_business_data = lr_batch->response_body ).
              ENDIF.
            CATCH /iwbep/cx_cp_remote INTO DATA(lx_cp_remote).
              " HTTP Status Code - {@link /IWBEP/CX_CP_REMOTE.data:HTTP_STATUS_CODE}
              " HTTP Status Reason Message - {@link /IWBEP/CX_CP_REMOTE.data:HTTP_STATUS_MESSAGE}
              " OData Error Details - {@link /IWBEP/CX_CP_REMOTE.data:S_ODATA_ERROR}
              " 还要判断HTTP状态等，挺麻烦的，先简单弄下
              lv_mtype = 'E'.
              lv_msg = lx_cp_remote->s_odata_error-message.
          ENDTRY.

          IF lr_batch->response_body-product IS NOT INITIAL.
            lr_datalake ?= lr_batch->data_ref.
            lr_datalake->product = lr_batch->response_body-product.
            lr_datalake->mtype = 'S'.
          ELSE.
            lr_datalake ?= lr_batch->data_ref.
            lr_datalake->mtype = lv_mtype.
            lr_datalake->msg = lv_msg.
          ENDIF.
        ENDLOOP.

      CATCH /iwbep/cx_gateway INTO DATA(lx_gateway).
        lv_msg = lx_gateway->get_text( ).
        _write_error( EXPORTING iv_msg = lv_msg CHANGING ct_datalake = ct_datalake ).
        RETURN.
    ENDTRY.

  ENDMETHOD.


  METHOD cerate_product_odata_v4.
*&---------------------------------------------------------------------*
*& 模拟公共接口（RAP/V4）调用
*&---------------------------------------------------------------------*
    " 定义参数格式
    TYPES:
      BEGIN OF ty_entity.
        INCLUDE TYPE a_product_3.
    TYPES:
        to_productdescription TYPE STANDARD TABLE OF a_productdescription_3 WITH EMPTY KEY,
      END OF ty_entity.
    " 暂时没找到批量处理的方法，不过为了保持和V4格式一致，这里还是保留批处理结构
    TYPES:
      BEGIN OF ty_batch,
        data_ref      TYPE REF TO data,
        request_body  TYPE ty_entity,
        request       TYPE REF TO /iwbep/if_cp_request_create,
        response_body TYPE ty_entity,
        response      TYPE REF TO /iwbep/if_cp_response_create,
      END OF ty_batch.

    DATA:
      lt_batch TYPE STANDARD TABLE OF ty_batch WITH EMPTY KEY,
      ls_batch TYPE ty_batch,
      lv_mtype TYPE bapi_mtype,
      lv_msg   TYPE bapi_msg.

    DATA:
      lo_client_proxy             TYPE REF TO /iwbep/if_cp_client_proxy,
      lo_create_request_batch     TYPE REF TO /iwbep/if_cp_request_batch,
      lo_create_request_changeset TYPE REF TO /iwbep/if_cp_request_changeset,
      lo_create_request           TYPE REF TO /iwbep/if_cp_request_create,
      lo_create_response          TYPE REF TO /iwbep/if_cp_response_create,
      lo_data_desc_node_root      TYPE REF TO /iwbep/if_cp_data_desc_node,
      lo_data_desc_node_child     TYPE REF TO /iwbep/if_cp_data_desc_node,
      lo_entity_list_resource     TYPE REF TO /iwbep/if_cp_resource_list.

    TRY.
        " OData代理
        " ID和Version可以从S4HANA_OP_API包中查找
        DATA: ls_service_key TYPE /iwbep/if_cp_client_proxy=>ty_s_service_key_v4.
        ls_service_key = VALUE #( service_id      = 'API_PRODUCT_2'
                                  service_version = '0002'
                                  repository_id   = /iwbep/if_v4_registry_types=>gcs_repository_id-sadl_a2x ).
        lo_client_proxy = /iwbep/cl_cp_client_proxy_fact=>create_v4_local_proxy( is_service_key     = ls_service_key
                                                                                 iv_do_write_traces = abap_true ).

        " 创建资源对象
        lo_create_request_batch = lo_client_proxy->create_request_for_batch( ).
        lo_entity_list_resource = lo_client_proxy->create_resource_for_entity_set( 'PRODUCT' ).

        LOOP AT ct_datalake REFERENCE INTO DATA(lr_datalake).
          " 还要回写消息，统一记录起来
          CLEAR ls_batch.
          ls_batch-data_ref = lr_datalake.
          INSERT ls_batch INTO TABLE lt_batch REFERENCE INTO DATA(lr_batch).

          " 基础视图
          lr_batch->request_body-producttype = 'FERT'.
          lr_batch->request_body-industrysector = 'M'.
          lr_batch->request_body-baseunit = 'EA'.
          " 物料描述
          lr_batch->request_body-to_productdescription = VALUE #( ( language = '1' productdescription = lr_datalake->productname ) ).

          "
          lr_batch->request =
          lo_create_request = lo_entity_list_resource->create_request_for_create( ).
          " 节点描述
          lo_data_desc_node_root = lo_create_request->create_data_descripton_node( ).
          " 注释了也不会报错，那就不写了，毕竟字段多起来会很麻烦
*          lo_data_desc_node_root->set_properties( VALUE #(
*              ( |PRODUCT| )
*              ( |PRODUCTTYPE| )
*              ( |INDUSTRYSECTOR| )
*              ( |BASEUNIT| )
*              ( |BASEISOUNIT| )
*          ) ).
          " 子节点描述
          lo_data_desc_node_child = lo_data_desc_node_root->add_child( '_PRODUCTDESCRIPTION' ).
*          lo_data_desc_node_child->set_properties( VALUE #(
*              ( |LANGUAGE| )
*              ( |PRODUCTDESCRIPTION| )
*          ) ).

          lo_create_request->set_deep_business_data( is_business_data    = lr_batch->request_body
                                                     io_data_description = lo_data_desc_node_root ).
          lo_create_request_changeset = lo_create_request_batch->create_request_for_changeset( ).
          lo_create_request_changeset->add_request( lo_create_request ).
          lo_create_request_batch->add_request( lo_create_request_changeset ).
        ENDLOOP.

        " V4协议只允许批量执行
        lo_create_request_batch->execute( ).

        " 回写执行消息
        LOOP AT lt_batch REFERENCE INTO lr_batch.
          TRY.
              lo_create_request = lr_batch->request.
              lo_create_request = lo_create_request->check_execution( ).
              IF lo_create_request IS BOUND.
                lo_create_response = lo_create_request->get_response(  ).
                lo_create_response->get_business_data( IMPORTING es_business_data = lr_batch->response_body ).
              ENDIF.
            CATCH /iwbep/cx_cp_remote INTO DATA(lx_cp_remote).
              " HTTP Status Code - {@link /IWBEP/CX_CP_REMOTE.data:HTTP_STATUS_CODE}
              " HTTP Status Reason Message - {@link /IWBEP/CX_CP_REMOTE.data:HTTP_STATUS_MESSAGE}
              " OData Error Details - {@link /IWBEP/CX_CP_REMOTE.data:S_ODATA_ERROR}
              " 还要判断HTTP状态等，挺麻烦的，先简单弄下
              lv_mtype = 'E'.
              lv_msg = lx_cp_remote->s_odata_error-message.
          ENDTRY.

          IF lr_batch->response_body-product IS NOT INITIAL.
            lr_datalake ?= lr_batch->data_ref.
            lr_datalake->product = lr_batch->response_body-product.
            lr_datalake->mtype = 'S'.
          ELSE.
            lr_datalake ?= lr_batch->data_ref.
            lr_datalake->mtype = lv_mtype.
            lr_datalake->msg = lv_msg.
          ENDIF.
        ENDLOOP.

      CATCH /iwbep/cx_gateway INTO DATA(lx_gateway).
        lv_msg = lx_gateway->get_text( ).
*        _write_error( EXPORTING iv_msg = lv_msg CHANGING datalake = datalake ).
        RETURN.
    ENDTRY.

  ENDMETHOD.

  METHOD _write_error.

    LOOP AT ct_datalake REFERENCE INTO DATA(lr_datalake).
      lr_datalake->mtype = 'E'.
      lr_datalake->msg = iv_msg.
    ENDLOOP.

  ENDMETHOD.

ENDCLASS.

测试

EML挺好的语言，就是不能用在BO里，测试就用EML演示下：

示例代码
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
CLASS ycl_clean_core_demo DEFINITION
  PUBLIC
  FINAL
  CREATE PUBLIC .

  PUBLIC SECTION.
    INTERFACES if_oo_adt_classrun .
ENDCLASS.


CLASS ycl_clean_core_demo IMPLEMENTATION.
  METHOD if_oo_adt_classrun~main.

    " 模拟界面点击按钮创建物料
    MODIFY ENTITIES OF zr_ydemot001
        ENTITY datalake
        EXECUTE CreateErpProduct
        FROM VALUE #( ( uuid = '8F0EA20832B71FE08CAE1FF329BDD452' ) ).

    " 执行
    COMMIT ENTITIES
        RESPONSE OF zr_ydemot001
        FAILED DATA(commit_failed)
        REPORTED DATA(commit_reported).
    IF commit_failed IS NOT INITIAL.
      out->write( commit_failed ).
      RETURN.
    ENDIF.

    " 读取处理结果
    READ ENTITY zr_ydemot001
        ALL FIELDS WITH VALUE #( ( %key-uuid = '8F0EA20832B71FE08CAE1FF329BDD452' ) )
        RESULT FINAL(result).
    out->write( result ).

  ENDMETHOD.
ENDCLASS.
